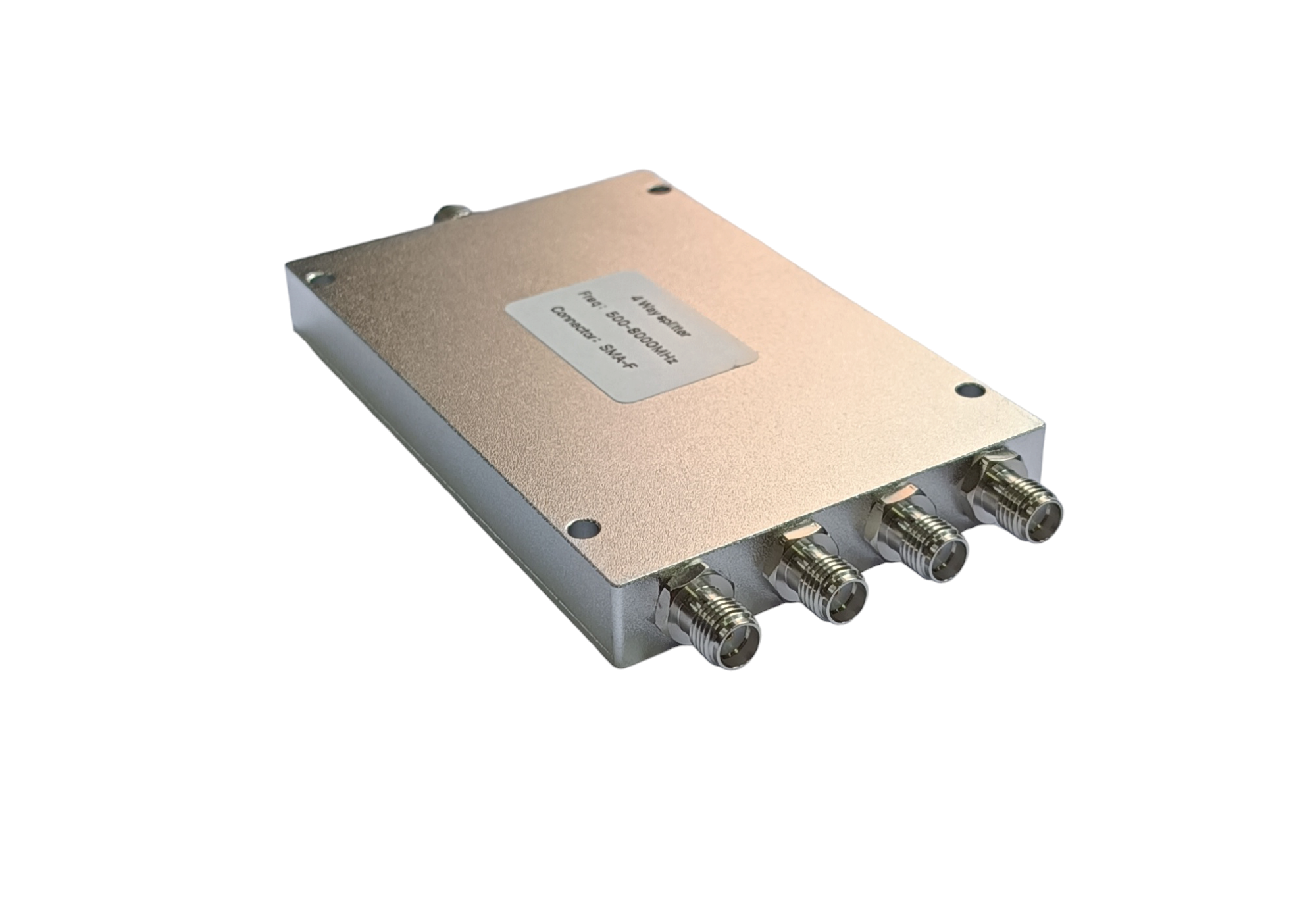

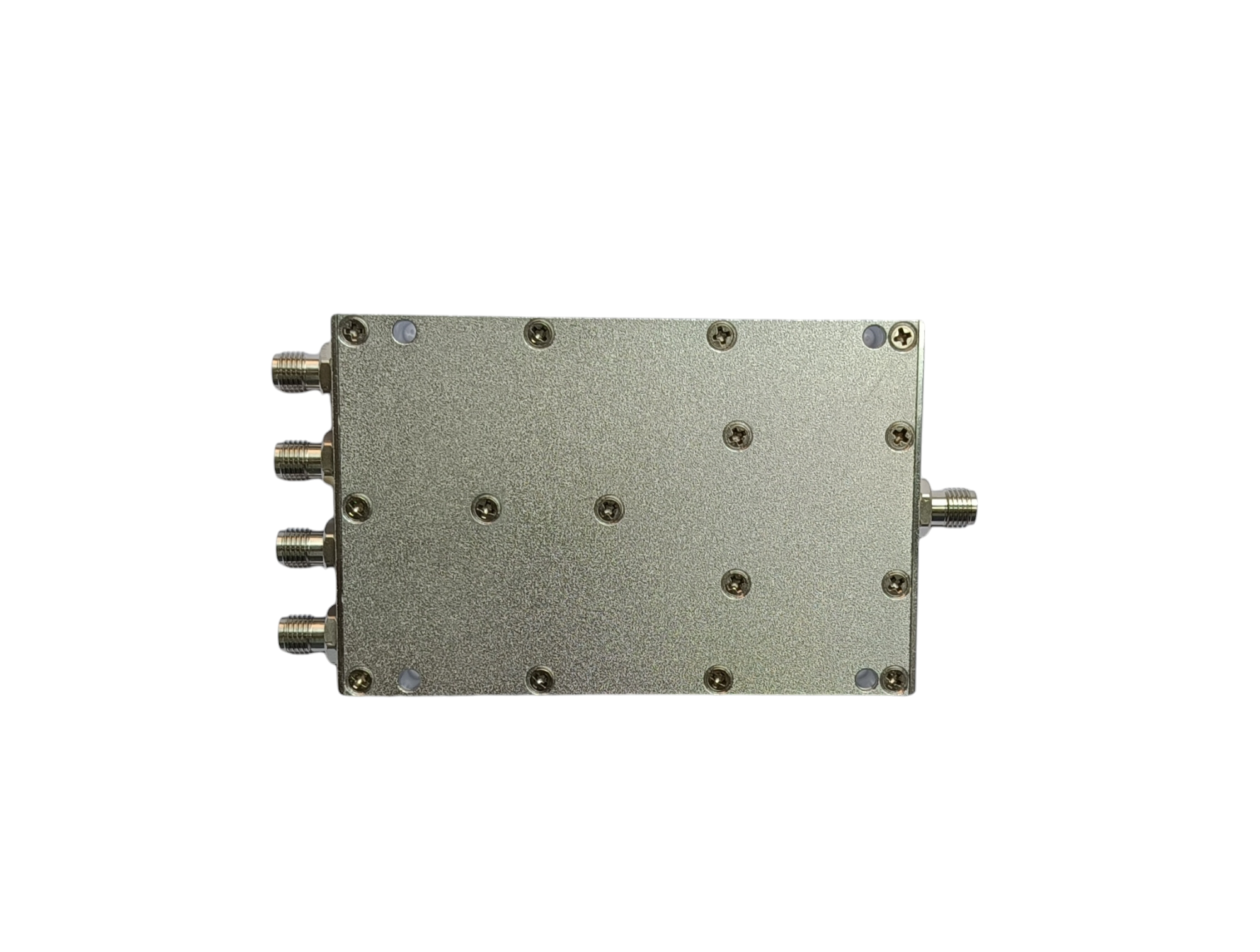

4way Splitter, SMA F 500-6000mhz

Electrical Specification of 4 Way SMA Microstrip Splitter 500 to 8000 Mhz:

• Characteristic Impedance : 50 ohm
• Frequency Range : 500-8000Mhz
• VSWR : Input Port ≤ 1.30 ,Output Port ≤ 1.20
• Insertion Loss : ≤ 1.8
• Amplitude Balance (dB) : ≤ 0.3
• Isolation (dB) : ≥ 20
• Power : 30 Watt
• Connector : SMA-F
• RoHS : Compliance
• Wide Band
• High Power Handling
• Low Insertion Loss
• Temperature range of up to 70 Deg Cen.
