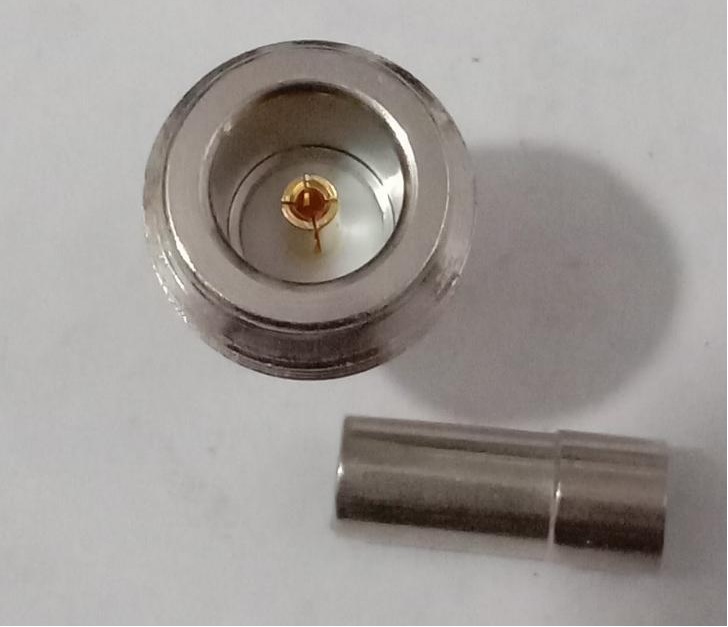

N Female LMR 200 Crimp
N Female LMR 200 Crimp
Electrical Specification
| Parameter | Specification |
|---|---|
| Characteristic Impedance | 50 ohm |
| Frequency Range | DC – 6 GHz |
| VSWR | ≤ 1.15 @ DC–4 GHz |
| Dielectric Withstanding Voltage | ≥ 1000V RMS, 50Hz, at sea level |
| Dielectric Resistance | ≥ 5000 MΩ |
| Contact Resistance (Center) | ≤ 1.0 mΩ |
| Contact Resistance (Outer) | ≤ 0.25 mΩ |
Mechanical Specification
| Parameter | Specification |
|---|---|
| Durability | Mating cycles ≥ 500 |
Material and Plating Specification
| Component | Material | Plating |
|---|---|---|
| Body | Brass | Nickel (Ni) |
| Insulator | PTFE (Teflon) | – |
| Center Conductor | Phosphor Copper | Gold (Au) |
Environmental Specification
| Parameter | Specification |
|---|---|
| Operating Temperature Range | -40°C to +85°C |
| RoHS Compliance | Yes |
