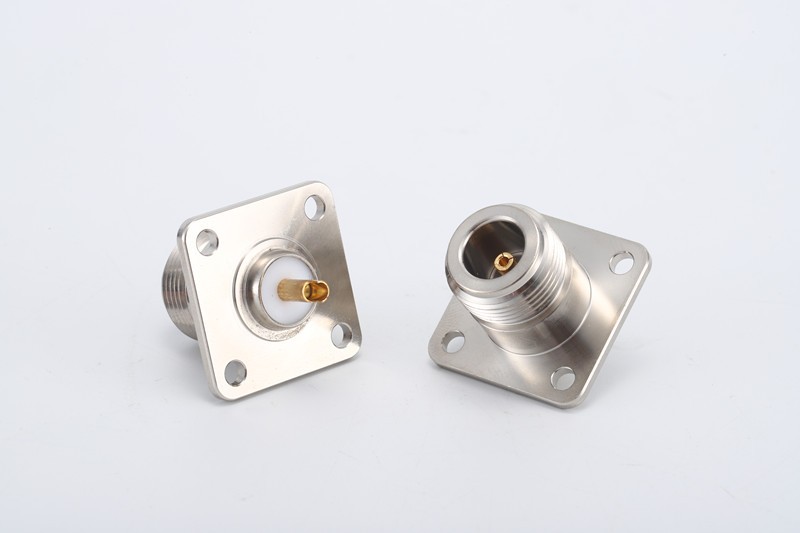

NF Penal 25sqmm Connector

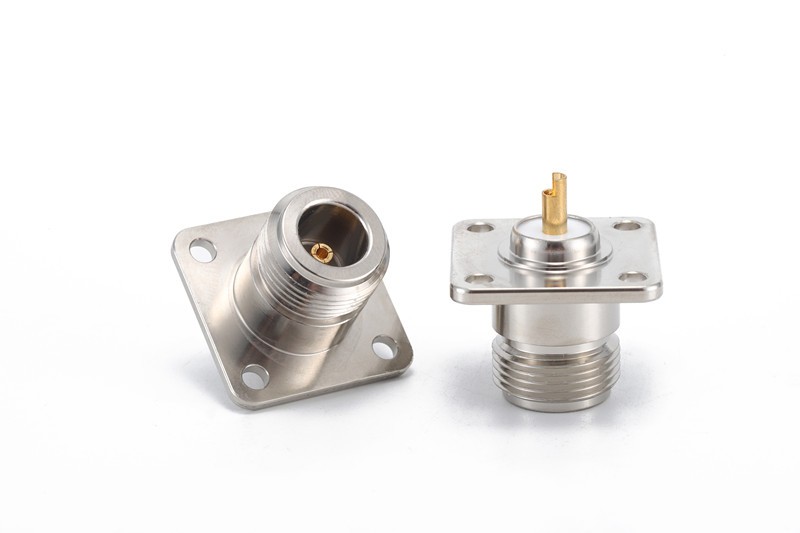

NF Penal 25sqmm Connector
|
Electrical data |
Requirements |
|
|
Frequency range |
DC-6GHZ |
|
|
Dielectric withstanding voltage |
1500V |
|
|
Characteristic impedance |
50Ω |
|
|
Insulation Resistance |
≧5000MΩ |
|
|
Contact Resistance |
||
|
Centre conductor |
≦1.0mΩ |
|
|
Outer conductor |
≦0.2mΩ |
|
|
VSWR |
≦1.2 |
|
|
Mechanical data |
Requirements |
|
|
Durability (mating) |
≧500 |
|
|
Environmental data |
Requirements |
|
|
Temperature range |
-45℃ to 125℃ |
|
|
Material data |
Requirements |
|
|
Connector parts |
Material |
Plating |
|
Body |
Brass |
Nickel-plated |
|
Pin contacts |
Brass |
gold plated |
|
Insulators |
PTFE |
|
